Heidelberg SM 74
(All sizes in mm)
| Inkers |
Colour |
Prod Code |
Set Qty |
Core Dia |
Roller Dia |
Rubber Length |
Total Length |
| Form Oscillator |
Blue |
HE402 |
1 |
35.6 |
60 |
754.4 |
812.8 |
| Form Oscillator |
Red |
HE403 |
1 |
35.6 |
55 |
754.4 |
812.8 |
| Form Oscillator |
White |
HE401 |
1 |
43.2 |
70 |
754.4 |
812.8 |
| Form Oscillator |
Yellow |
HE404 |
1 |
43.2 |
65 |
754.4 |
812.8 |
| Vibrator, Ink Ductor |
Black |
HE407 |
1 |
40.6 |
52 |
750.6 |
786.1 |
| Distributor |
Red |
HE405 |
2 |
35.6 |
54 |
751.8 |
820.4 |
| Distributor |
Yellow |
HE406 |
3 |
38.1 |
64 |
751.8 |
820.4 |
| Total Set Quantity |
|
|
10 |
|
|
|
|
| |
|
|
|
|
|
|
|
| Alcolor Dampening Systems |
| Alcolor Water Form - Complete |
Blue |
HE408 |
1 |
53.3 |
75 |
751.8 |
751.8 |
| Alcolor Pan Roller Complete |
Blue |
HE409 |
1 |
63.5 |
84.6 |
767.1 |
767.1 |
| Bearings |
|
6203 2RSB |
|
|
|
|
|
|
 |
Roller

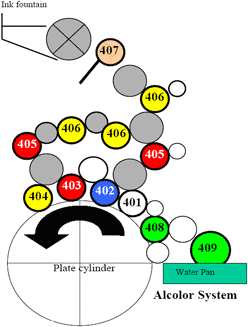

Configuration Diagram |
 |
 |
A roller fitting service is now available by a skilled technician, with settings adjusted to manufacturers recommendations.
|
|
 |
|
|
|
|
